Material: environmentally friendly and nontoxic PET, 1.0 viscosity, from Taiwan province.
Working temperature: -50℃~+150℃
Melting temperature: 240℃±10°C
Fireproofing grade: UL VW - 1
Product certification: UL, SGS
Optional filament diameter: 0.20mm, 0.22mm, 0.25mm, 0.38mm

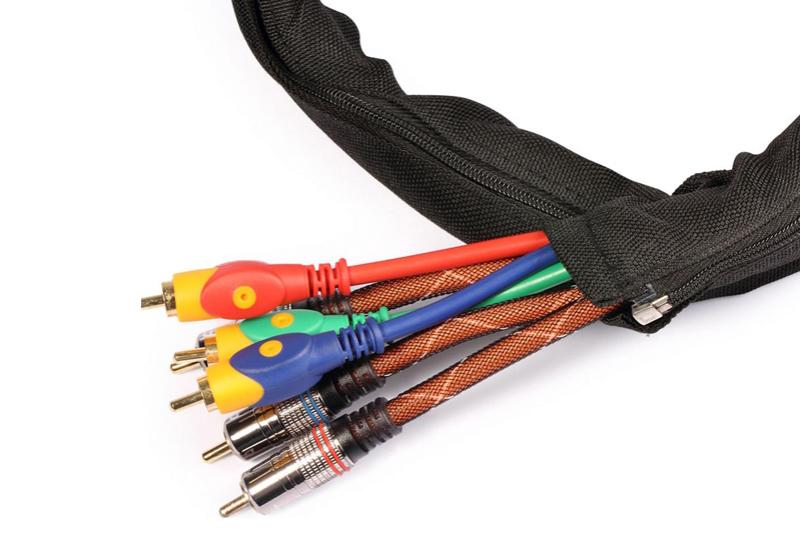

The PET side entry braided sleeving (zipper sleeve) is first braided into an open structure by a wire braiding machine, and then sutured with zippers (or hook and loop fasteners into sleeving). The PET side entry braided sleeving (zipper sleeve) has been widely used because it is ideal for use in binding items in different shapes and sizes. It can be installed and disassembled quickly and easily, and features an outstanding elasticity, fire resistance, wear resistance and heat insulation property. The appearance is smooth, brilliant and colorful.
Application
The PET side entry braided sleeving (zipper sleeve) is used in automobile wiring, aircraft wiring, fiber, cable, electrical wire, electrical appliances, wire, audio, computer and other industries.
Model | Folding diameter | Maximum diameter of wire harness | Package(L) | |
LP-012 | 12mm | 8mm | According to customers' requirements | |
LP-020 | 20mm | 15mm | ||
LP-030 | 30mm | 20mm | ||
LP-050 | 50mm | 35mm | ||
LP-064 | 64mm | 45mm |
Note: Please call or email us for other specifications.
