Electromagnetic Shielding Braided Sleeving
- Material: synthetic fiber
- Working temperature: -40℃-150℃
- Fireproofing grade: 94-V0
- Expansion range: 1-3 times
- Color: silver
- Certification: SGS, UL
Inquiry Now

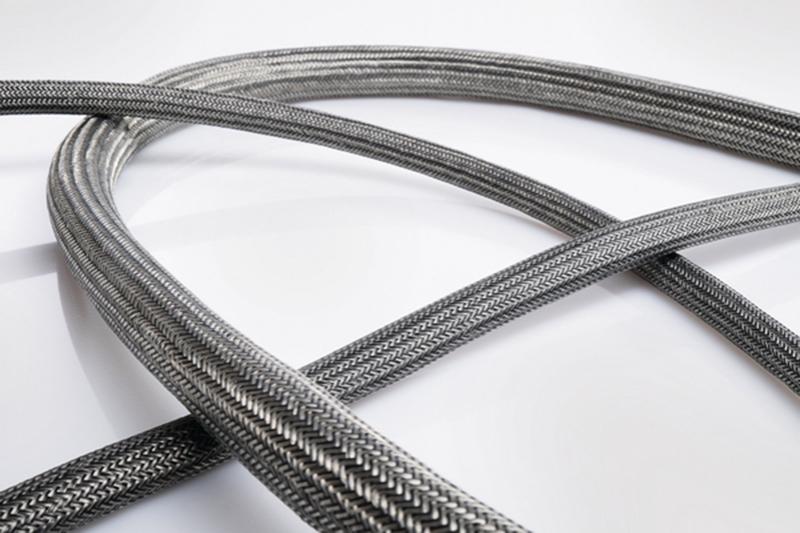

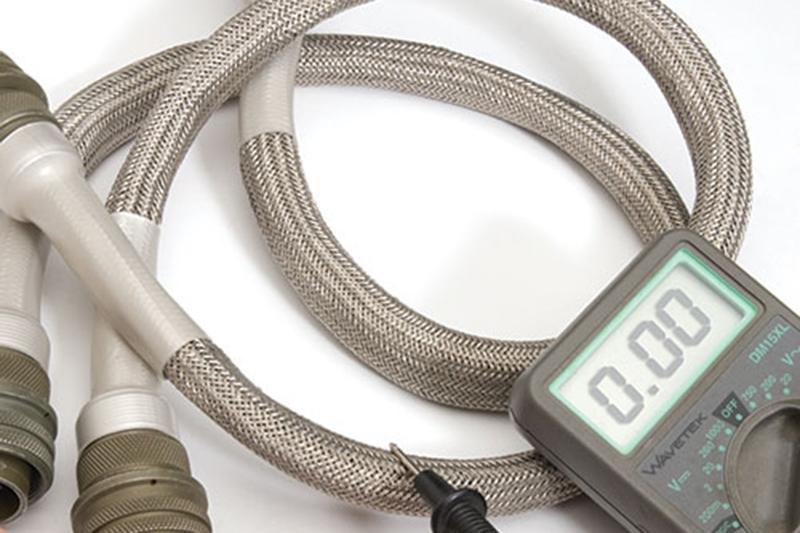

The electromagnetic shielding braided sleeving has a higher density braiding, with an inner layer made from synthetic fiber and metal surface giving it a specialized structure. It features a high density, strong shielding, abrasion resistance and flexibility, light body to easily protect the cable against electromagnetic interference.
Application

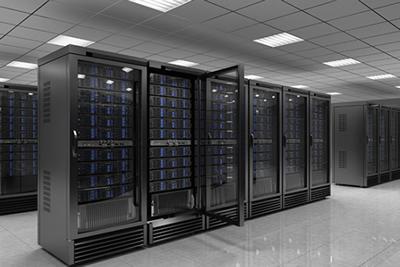

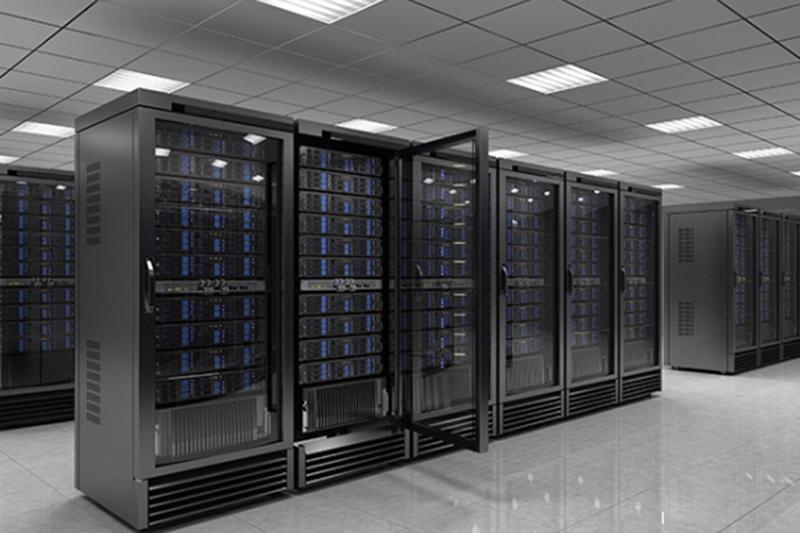

The electromagnetic shielding braided sleeving is mainly used in places where there is a need for lightweight, flexibility and high performance, such as computer integrated systems, electronic office equipment, communications systems and aerospace cables.
Optional specification
| Model | Flat width | Coverage range | Weight(kg/30m) |
|---|---|---|---|
| 3mm | 2-6mm | 0.34 | |
| 10mm | 6-13mm | 0.63 | |
| 13mm | 9-19mm | 0.95 | |
| 16mm | 13-25mm | 1.27 |
