RS1461
Aluminum Foil Fiberglass Sleeving
- Material: Aluminum foil + fiberglass
- Operating Temperature: -40°C to +200°C
- Color: Natural aluminum foil finish
- Flame Retardancy: Complies with GB 8410-2006 requirements
- Cutting Method: Cold cutting
- Packaging: Paper reel
Inquiry Now

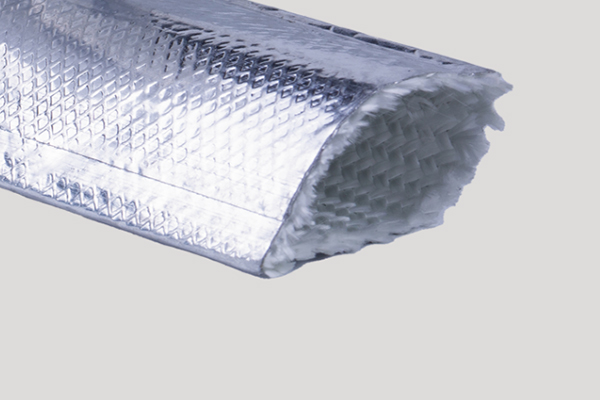

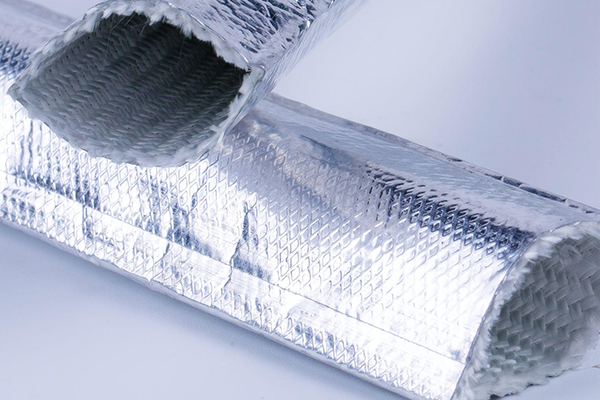

RS1461 series is a closed-end aluminum foil fiberglass sleeving featuring a dual-layer composite structure, designed for direct installation onto hoses or wire harnesses prior to assembly. The outer aluminum foil layer blocks radiant heat transfer, while the inner high-temperature fiberglass braid enhances thermal insulation efficiency without compromising flexibility.
Applications

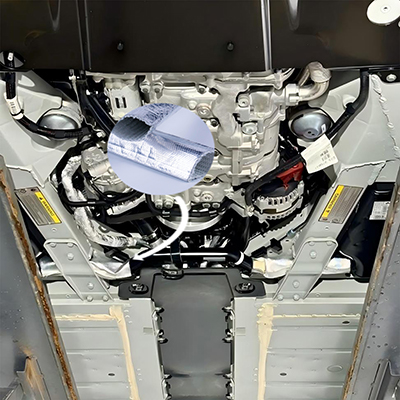

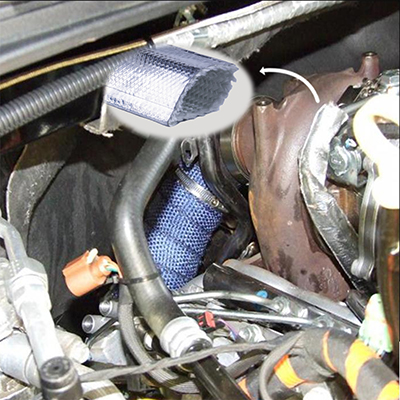

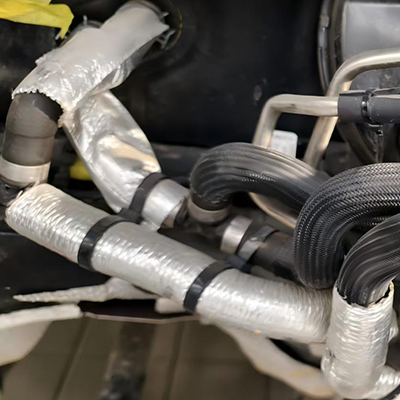

This aluminum foil fiberglass sleeving is widely used in automotive applications for thermal protection of engine wire harnesses, air conditioning pipes, control cables, and fuel lines.
Certifications
Parameters
| Model | Diameter (mm) | Thickness (mm) | Packaging Length (m/reel) |
|---|---|---|---|
| 8 | 0.55±0.15 | 50 | |
| 9 | 0.55±0.15 | 50 | |
| 10 | 0.55±0.15 | 50 | |
| 11 | 0.55±0.15 | 50 | |
| 12 | 0.55±0.15 | 50 | |
| 13 | 0.55±0.15 | 50 | |
| 14 | 0.55±0.15 | 50 | |
| 15 | 0.55±0.15 | 50 | |
| 16 | 0.55±0.15 | 50 | |
| 17 | 0.55±0.15 | 50 | |
| 18 | 0.55±0.15 | 50 | |
| 19 | 0.55±0.15 | 50 | |
| 20 | 0.55±0.15 | 50 | |
| 22 | 0.55±0.15 | 50 | |
| 24 | 0.55±0.15 | 50 | |
| 25 | 0.55±0.15 | 50 | |
| 32 | 0.55±0.15 | 50 | |
| 36 | 0.55±0.15 | 50 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
Download PDF
