Material: Taiwan, 1.0viscosity, environmentally friendly and nontoxic PET (polyester fiber)
Flame retardant rating: DIN5510
Color: black, silvery
Certification: SGS, DIN5510
Working temperature: -50℃~150℃
Melting point: 240±10℃
Fireproofing grade: 94-V0
Optional diameter: 0.20mm, 0.22mm, 0.25mm, 0.38mm

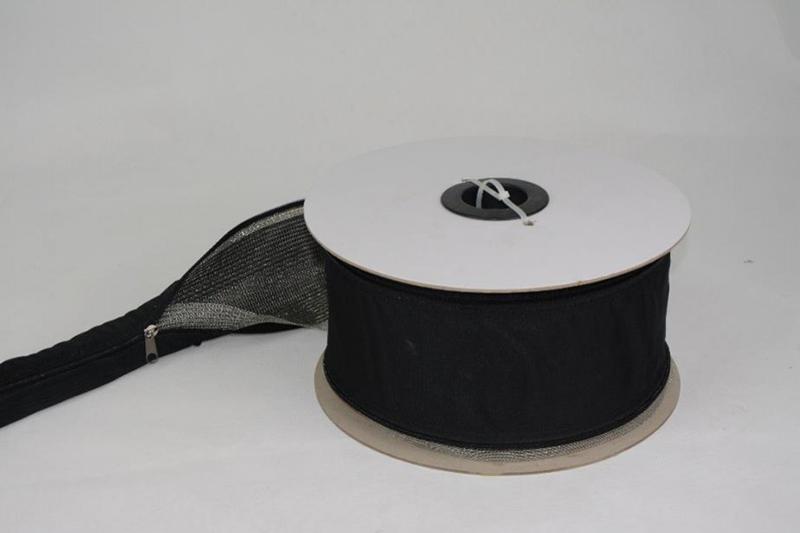

The tinned copper shielding braided sleeving is made of a tin-plated copper crochet net, fire retardant fabric and zipper (or hook and loop fasteners). It is designed for the protection, maintenance, and reassembly and testing of inner wires. It features a shielded electromagnetic interference, noise reduction, dust prevention, inflaming retarding, wear resistance and other attractive features.
Application
This product can be used in trains, high-speed railways, automobiles, aerospace, medical equipment, communications and other fields.
Size and specification | ||||
Model | Inner diameter | Covering range | Package(L) | |
LP-016 | 16mm | 10-16mm | 25m/reel | |
LP-020 | 20mm | 17-20mm | 25m/reel | |
LP-030 | 30mm | 21-30mm | 25m/reel | |
LP-050 | 50mm | 31-50mm | 25m/reel |
Note: Please call or email us for other specifications.
