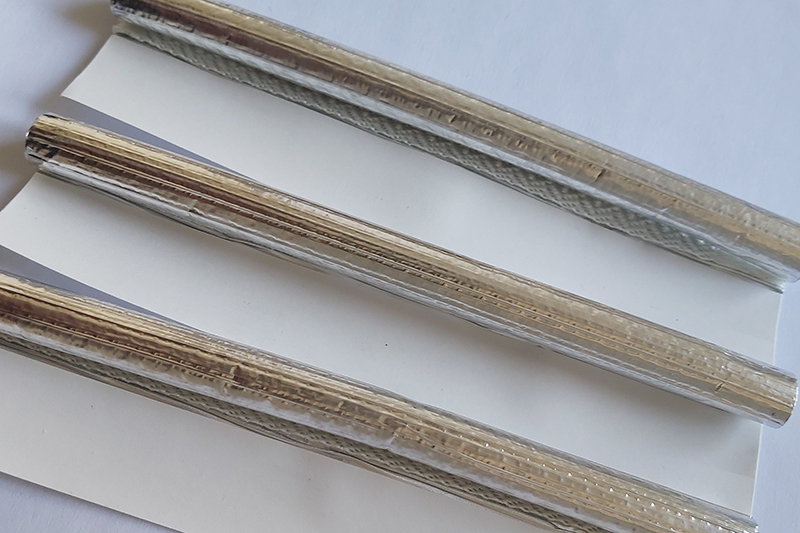

Thermo Shield Wrap

Thermo Shield Wrap

Material: Aluminum and fiberglass
Working temperature: -50℃~+200℃
Color: silver
Certification: RoHs/ELV
Cutting: scissor or by cutting machines
Thermal insulation: test method according to SAE J2302
Oil resistance: See GMW 14327 pass

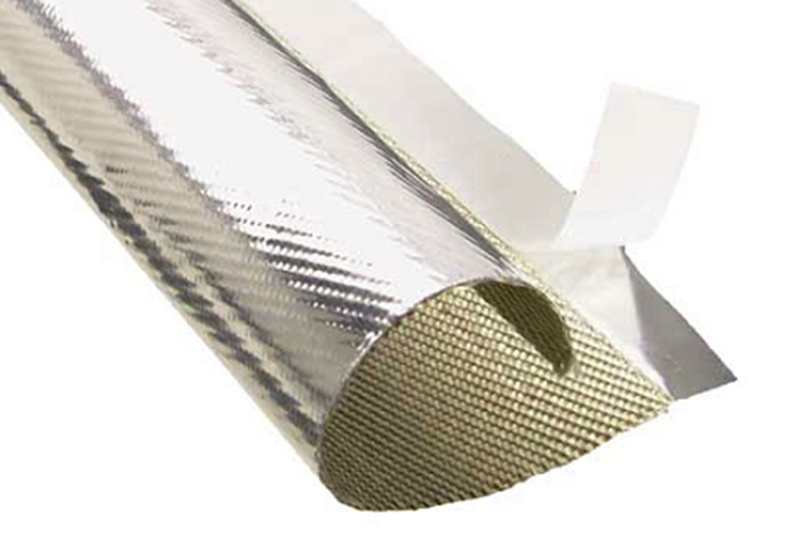

Aluminum fiberglass self-closing wrap is made of aluminum foil, fiberglass and polyester. It is designed to provide maximum protection for wires, hoses, and cables from the very damaging effect of radiant heat with an easy application. Simply pull apart the material, wrap around the wire, and re-close the wrap.
The easy to use wrap is a combination of a high temperature insulation material to a highly reflective aluminum foil with a glue closure. It is also fireproof, fire resistant.

Application
The thermo shield wrap is widely used in automotive wiring harness protection, and also be applied to high voltage and high temperature environments.

Details
Item Inner diameter Flat width Thickness
OAF-009 8.9mm 42.0mm 0.6mm±0.1
OAF-013 12.7mm 70.0mm 0.6mm±0.1
OAF-019 19.1mm 90.0mm 0.6mm±0.1
OAF-026 25.4mm 115.0mm 0.6mm±0.1
OAF-032 31.8mm 120.0mm 0.6mm±0.1
OAF-038 38.1mm 150.0mm 0.6mm±0.1
OAF-045 44.5mm 180.0mm 0.6mm±0.1
OAF-050 50.8mm 195.0mm 0.6mm±0.1
OAF-060 57.2mm 205.0mm 0.6mm±0.1
