HST2441

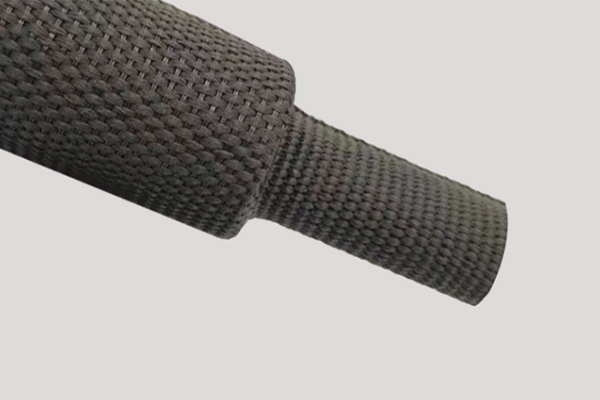

Heat Shrink Textile Sleeving
- Material: PET + PE
- Color: Black
- Operating Temperature: -40°C to +125°C
- Shrink Temperature: 200°C ±20°C
- Abrasion Resistance: ≥144,000 cycles (tested based on TL52668-A)
- Flame Retardancy:
- Finished product: Complies with GB 8410-2006 (burn rate ≤100 mm/min)
- Nominal Shrink Ratio: 2:1
- Packaging: Paper spool
Inquiry Now

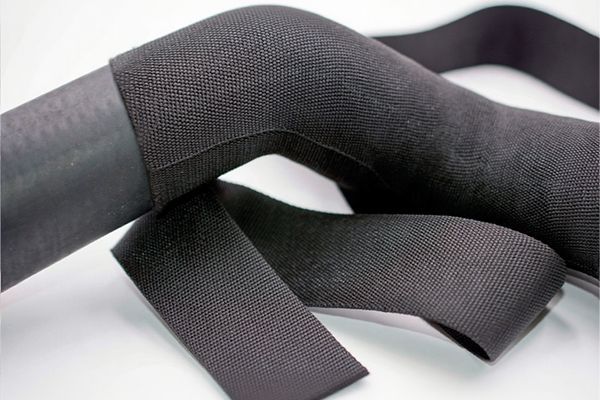

HST2441 series heat-shrink textile sleeving is manufactured from environmentally friendly, non-toxic PET fibers combined with PE heat-shrink filaments. It offers excellent noise reduction, flexibility, abrasion resistance, and heat-shrink performance. The sleeving can be easily installed on irregular hoses and effectively reduces wear and noise in harsh environments, extending equipment service life.

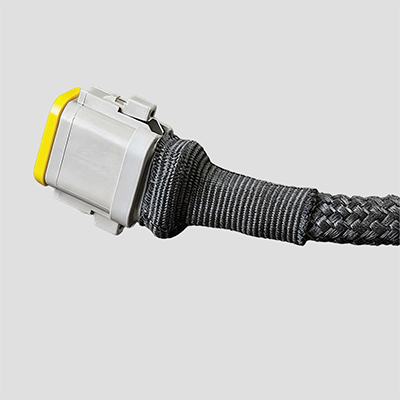

Applications
The heat shrink textile sleeving is mainly used for automotive pipelines and new energy copper and aluminum busbars. It provides superior abrasion protection for rubber hoses and pipelines.
Certifications
Parameters
| Model | Flat Width (mm) | Original Diameter (mm) | Shrunk Diameter (mm) | Packaging Length (m/spool) | Item Code |
|---|---|---|---|---|---|
| 12±2 | ≥6 | ≤3 | 100 | RS-006 | |
| 16±2 | ≥8 | ≤4 | 100 | RS-008 | |
| 20±2 | ≥10 | ≤5 | 100 | RS-010 | |
| 24±3 | ≥12 | ≤6 | 100 | RS-012 | |
| 29±3 | ≥16 | ≤8 | 100 | RS-016 | |
| 37±3 | ≥20 | ≤10 | 100 | RS-020 | |
| 45±3 | ≥25 | ≤12.5 | 100 | RS-025 | |
| 54±4 | ≥30 | ≤15 | 50 | RS-030 | |
| 60±4 | ≥35 | ≤17.5 | 50 | RS-035 | |
| 68±4 | ≥40 | ≤20 | 50 | RS-040 | |
| 87±5 | ≥50 | ≤25 | 50 | RS-050 | |
| 100±5 | ≥60 | ≤30 | 50 | RS-060 | |
| 118±5 | ≥70 | ≤35 | 50 | RS-070 | |
| 132±5 | ≥80 | ≤40 | 50 | RS-080 | |
| 145±5 | ≥90 | ≤45 | 50 | RS-090 | |
| 164±5 | ≥100 | ≤50 | 50 | RS-100 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
