TS2565

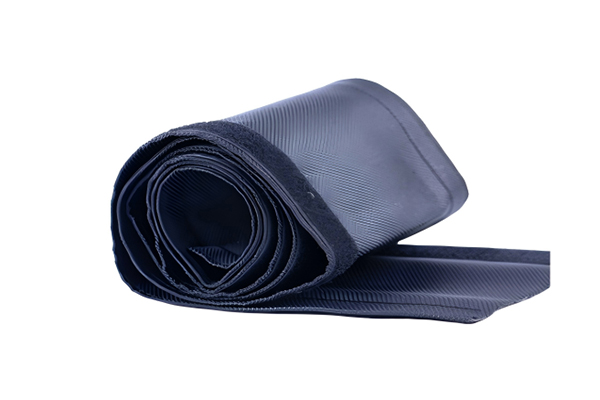

PET Hook & Loop Textile Wrap
- Material: Polyester (PET)
- Operating Temperature: −40°C to +150°C
- Color: Black
- Cutting Method: Hot cutting
- Packaging: Paper reel
Inquiry Now
TS2565 series wrap is woven from high-strength, environmentally friendly PET filaments. It features a hook-and-loop design for quick, repeated installation and removal. The wrap maintains flexibility across a wide temperature range (-40℃ to 150℃) while offering excellent dustproof performance and abrasion resistance.

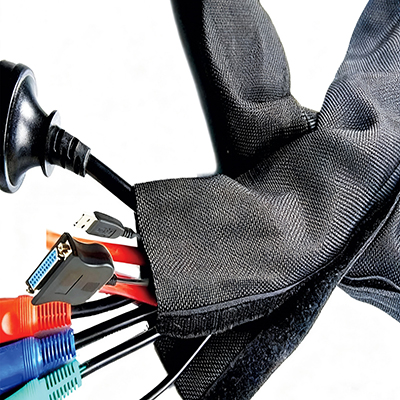

Applications
This wrap is designed for cable and harness systems requiring frequent inspection or maintenance, and is widely used in automotive, rail transit, wind power, and marine equipment.
Certifications
Parameters
| Model | Diameter (mm) | Width (mm) | Hook-and-Loop Width (mm) | Packaging Length (m/reel) |
|---|---|---|---|---|
| 20 | 90±6 | 20±2 | 25 | |
| 25 | 100±6 | 20±2 | 25 | |
| 30 | 110±6 | 20±2 | 25 | |
| 35 | 135±6 | 20±2 | 25 | |
| 40 | 160±10 | 20±2 | 25 | |
| 50 | 190±10 | 20±2 | 25 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
