TS2561

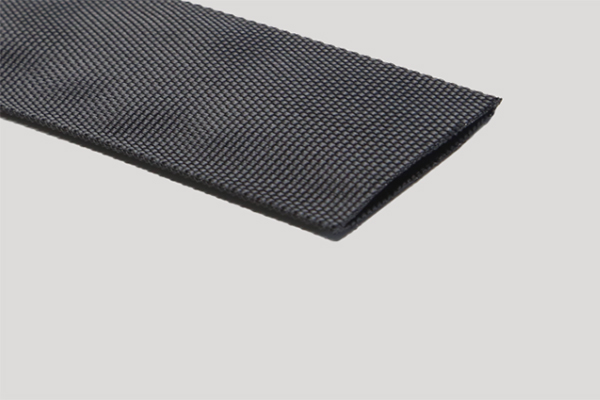

PET Textile Sleeving
- Color: Black
- Operating Temperature: −50°C to +150°C
- Abrasion Resistance: Grade 6, >60,000 cycles (ISO 6722:2013)
- Low-Temperature Performance: Tested at −70°C for 24 hours (no cracking)
- Cutting Method: Hot cutting
Inquiry Now
TS2561 series is a durable textile sleeving woven from high-quality polyester multifilament yarns. It provides reliable abrasion resistance, noise reduction, and corrosion resistance for the protection of hoses, cables, and wires in demanding applications.

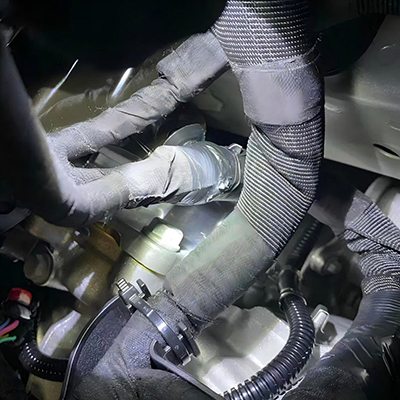

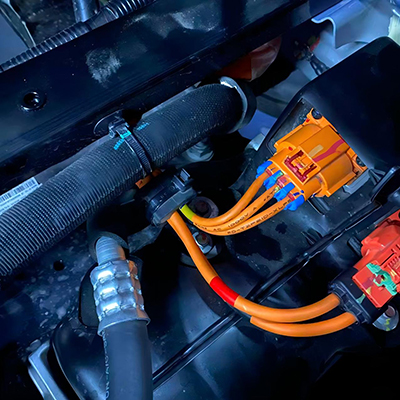

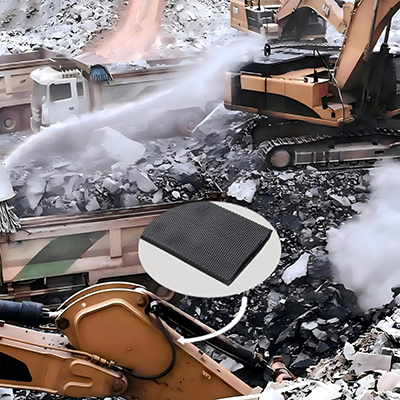

Applications
This sleeving is suitable for abrasion protection of fluid lines, industrial machinery, automotive systems, and electrical cables and harnesses.
Certifications
Parameters
| Model | Diameter (mm) | Width (mm) | Thickness (mm) | Packaging Length (m/reel) |
|---|---|---|---|---|
| 10 | 20±2 | 0.8±0.15 | 50 | |
| 13 | 25±2 | 0.8±0.15 | 50 | |
| 16 | 30±2 | 0.8±0.15 | 50 | |
| 19 | 35±2 | 0.8±0.15 | 50 | |
| 23 | 40±2 | 0.8±0.15 | 50 | |
| 25 | 45±2 | 0.8±0.15 | 50 | |
| 29 | 50±2 | 0.8±0.15 | 50 | |
| 32 | 55±2 | 0.8±0.15 | 50 | |
| 38 | 65±3 | 0.8±0.15 | 50 | |
| 42 | 70±3 | 0.8±0.15 | 50 | |
| 45 | 75±3 | 0.8±0.15 | 50 | |
| 48 | 80±3 | 0.8±0.15 | 50 | |
| 55 | 90±3 | 0.8±0.15 | 50 | |
| 61 | 100±3 | 0.8±0.15 | 50 | |
| 72 | 118±3 | 0.8±0.15 | 50 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
