TS2562

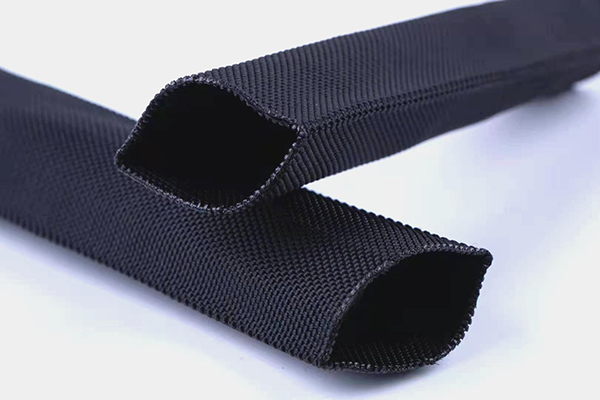

PA Textile Sleeving
- Color: Black
- Operating Temperature: −40°C to +150°C
- Abrasion Resistance: Grade 7, >140,000 cycles (ISO 6722:2013)
- Cutting Method: Hot cutting
Inquiry Now
TS2561 series is a durable textile sleeving woven from high-quality polyester multifilament yarns. It provides reliable abrasion resistance, noise reduction, and corrosion resistance, making it suitable for hoses, cables, and wires protection in demanding applications.
Applications

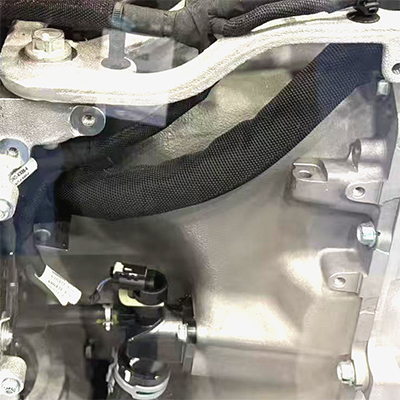

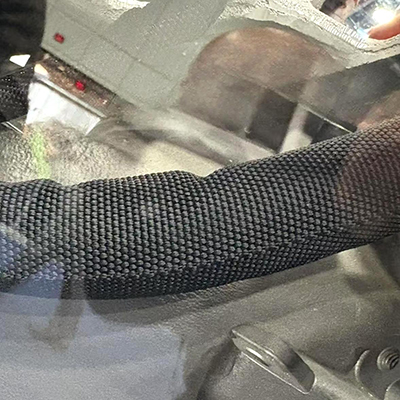

This sleeving is suitable for heavy machinery and industrial equipment, providing robust protection for rubber hoses and wire harnesses under high-load conditions.
Certifications
Parameters
| Model | Diameter (mm) | Width (mm) | Thickness (mm) | Packaging Length (m/reel) | Item Code |
|---|---|---|---|---|---|
| 10 | 20±2 | 1.1±0.2 | 50 | NC-010 | |
| 13 | 25±2 | 1.1±0.2 | 50 | NC-013 | |
| 16 | 30±2 | 1.1±0.2 | 50 | NC-016 | |
| 19 | 35±2 | 1.1±0.2 | 50 | NC-019 | |
| 23 | 40±2 | 1.1±0.2 | 50 | NC-023 | |
| 29 | 50±2 | 1.1±0.2 | 50 | NC-029 | |
| 32 | 55±2 | 1.1±0.2 | 50 | NC-032 | |
| 38 | 65±3 | 1.1±0.2 | 50 | NC-038 | |
| 42 | 70±3 | 1.1±0.2 | 50 | NC-042 | |
| 48 | 80±3 | 1.1±0.2 | 50 | NC-048 | |
| 55 | 90±3 | 1.1±0.2 | 50 | NC-055 | |
| 61 | 100±3 | 1.1±0.2 | 50 | NC-061 | |
| 68 | 110±3 | 1.1±0.2 | 50 | NC-068 | |
| 74 | 120±3 | 1.1±0.2 | 50 | NC-074 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
