EX901

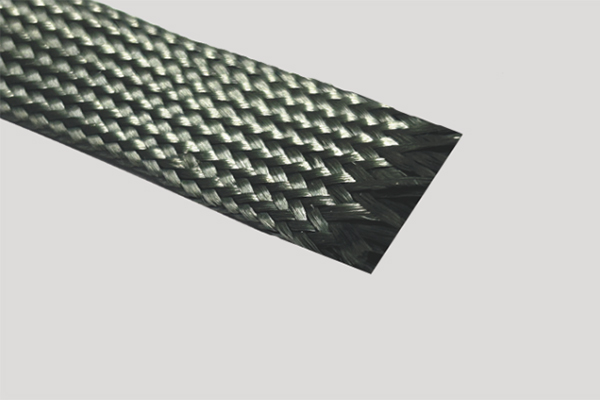

Nomex Braided Sleeving
- Material: 1200D Nomex® fiber
- Color: Green
- Operating Temperature: -200°C to +350°C
- Cutting Method: Scissor cutting
- Packaging: Paper reel
Inquiry Now

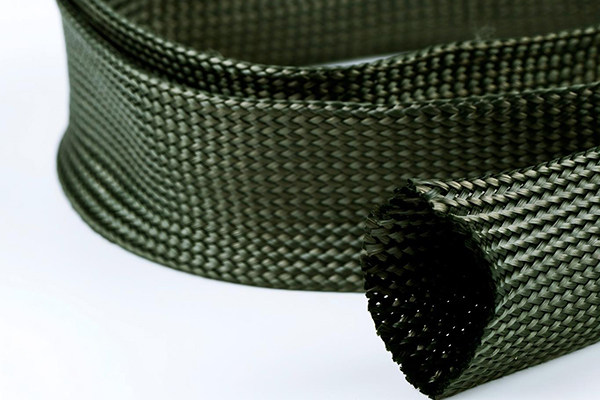

EX901 series braided sleeving is manufactured from Nomex® fibers using precision braiding techniques. It features flame retardancy, flexibility, and resistance to acids, oils, and alkalis. The sleeving effectively protects cables, hoses, and wire harnesses from high temperatures, flames, cuts, and abrasion.
Applications
This sleeving is designed for cable and harness protection in environments with extreme temperatures and fire exposure risks, including aerospace, motorsports, and high-temperature industrial applications.
Certifications
Parameters
| Model | Flat Width (mm) | Application Range (mm) | Packaging Length (m/reel) | Item Code |
|---|---|---|---|---|
| 3±1 | 1~4 | 200 | NX-003 | |
| 10±2 | 7~11 | 100 | NX-010 | |
| 13±2 | 14~18 | 100 | NX-013 | |
| 16±2 | 15~20 | 100 | NX-016 | |
| 20±3 | 20 ~23 | 100 | NX-020 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
Download PDF
