EX600

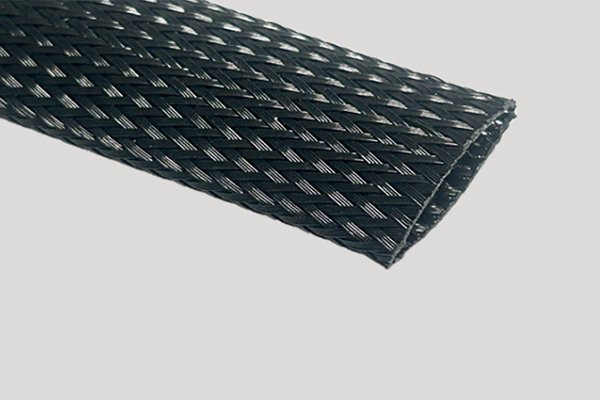

PET Monofilament Braided Sleeving
- Material: PET (polyester)
- Color: Black (custom colors available)
- Operating Temperature: -50°C to +150°C
- Flame Retardancy:
- Finished product: Complies with FMVSS 302 (burn rate < 100 mm/min)
- Raw material: Flame retardant grade up to UL94 V-0
- Cutting Method: Hot cutting
- Packaging: Paper reel
Inquiry Now

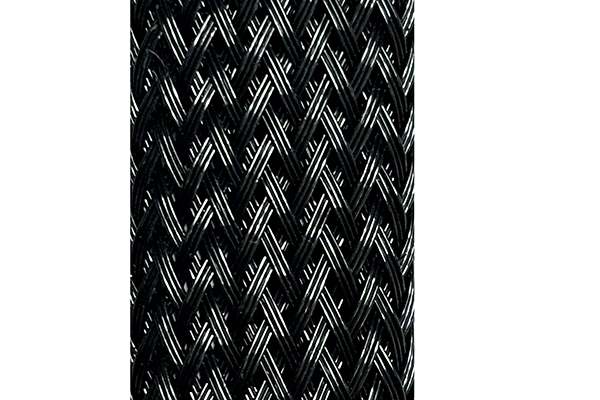

EX600 series braided sleeving is manufactured from PET monofilament. It offers good expandability for easy installation over connectors and long wire harnesses. The sleeving provides excellent abrasion and chemical resistance, with clean, hot-cut edges, and is available in multiple colors.

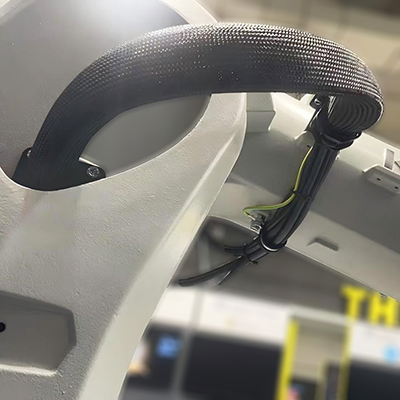

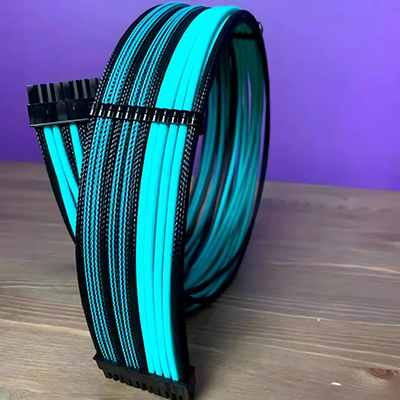

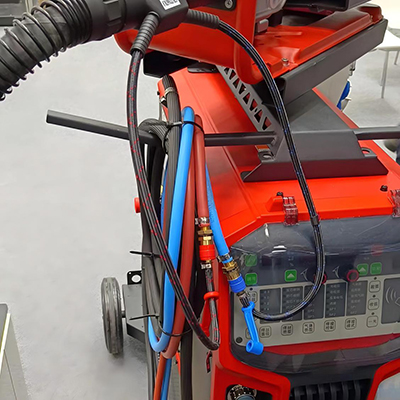

Applications
This PET monofilament braided sleeving is suitable for abrasion protection of hoses, pipes, and cables, especially in automotive engine compartments and other demanding environments.
Certifications
Parameters
| Model | Flat Width (mm) | Application Range (mm) | Packaging Length (m/reel) | Item Code |
|---|---|---|---|---|
| 3±1 | 1~5 | 1000 | PET-003 | |
| 6±2 | 3~9 | 500 | PET-006 | |
| 8±2 | 5~12 | 300 | PET-008 | |
| 10±2 | 7~15 | 300 | PET-010 | |
| 12±2 | 8~18 | 300 | PET-012 | |
| 14±2 | 10~20 | 300 | PET-014 | |
| 16±3 | 12~22 | 300 | PET-016 | |
| 19±3 | 14~25 | 300 | PET-019 | |
| 25±4 | 18~30 | 200 | PET-025 | |
| 28±4 | 20~35 | 200 | PET-028 | |
| 32±4 | 25~40 | 200 | PET-032 | |
| 38±4 | 30~45 | 100 | PET-038 | |
| 50±5 | 40~60 | 100 | PET-050 | |
| 64±5 | 45~80 | 50 | PET-064 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
