EX601

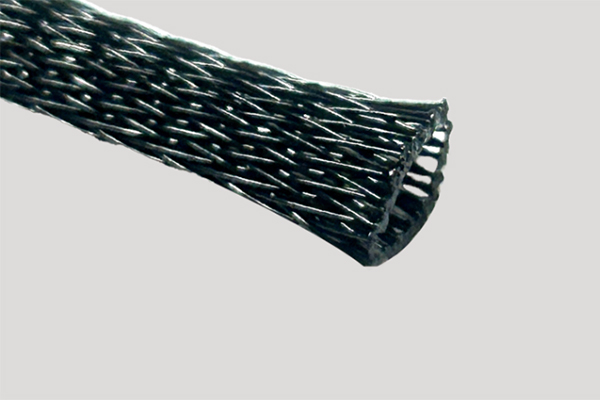

PET Single End Braided Sleeving
- Material: Polyester (PET)
- Color: Black (custom colors available)
- Operating Temperature: -50°C to +150°C
- Flame Retardancy:
- Finished product: Complies with FMVSS 302 (burn rate < 100 mm/min)
- Raw material: Flame retardant grade up to UL94 V-0
- Cutting Method: Hot cutting
- Packaging: Paper reel
Inquiry Now

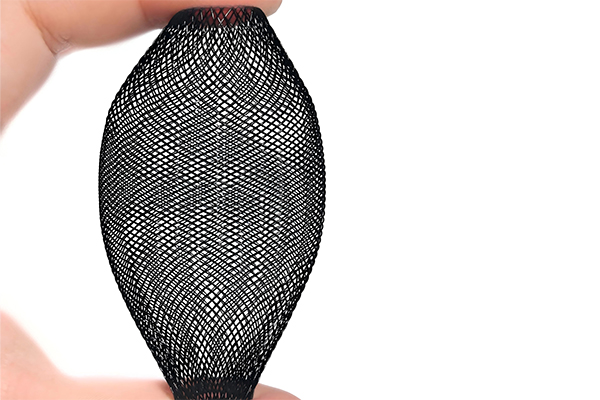

X601 single-end braided sleeving is manufactured from PET monofilament with a filament diameter of approximately 0.25 mm. It provides good expandability and flame-retardant performance, offering reliable protection for wire harnesses in various applications.

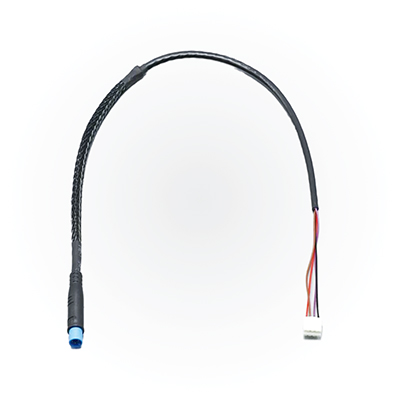

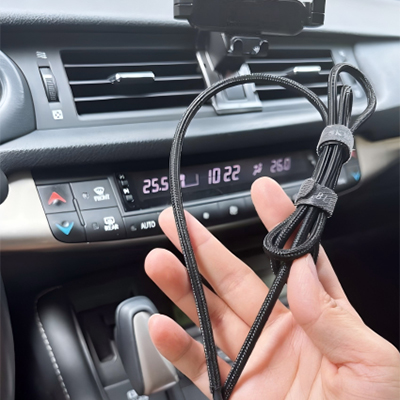

Applications
This single-end braided sleeving is suitable for low-voltage automotive wire harnesses, electronic connector harnesses, and other applications requiring reliable wire protection.
Certifications
Parameters
| Model | Flat Width (mm) | Diameter (mm) | Application Range (mm) | Packaging Length (m/reel) |
|---|---|---|---|---|
| 3±1 | 0.25 | 3~8 | 1000 | |
| 4±1 | 0.25 | 5~11 | 1000 | |
| 6±1 | 0.25 | 8~14 | 1000 | |
| 8±1 | 0.25 | 11~16 | 1000 | |
| 10±1 | 0.25 | 20~24 | 500 | |
| 12±1 | 0.25 | 25~30 | 500 | |
| 15±1 | 0.25 | 30~54 | 400 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
