EX200

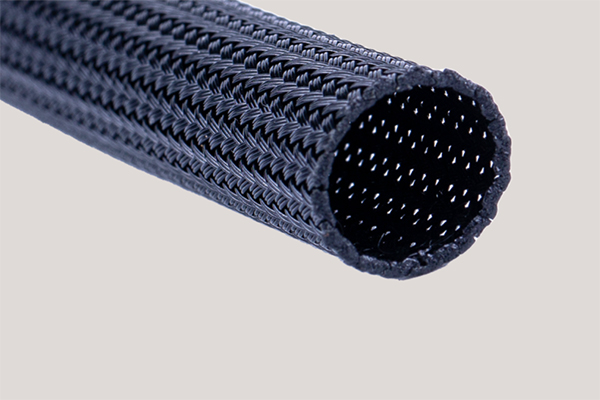

PA Monofilament Braided Sleeving
- Material: Nylon (PA)
- Color: Black (custom colors available)
- Operating Temperature: -50°C to +150°C
- Flame Retardancy:
- Finished product: Complies with FMVSS 302 (burn rate < 100 mm/min)
- Raw material: Flame retardant grade up to UL94 V-0
- Cutting Method: Hot cutting
- Packaging: Paper reel
Inquiry Now
EX200 series braided sleeving is manufactured from environmentally friendly, non-toxic nylon monofilament, offering excellent abrasion resistance, expandability, flame retardancy, and corrosion resistance. It effectively protects hoses, pipes, wire harnesses, and cables from mechanical damage such as abrasion, cuts, and wear.

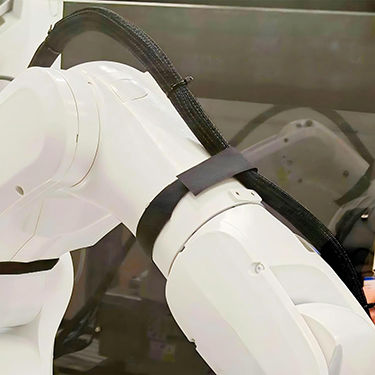

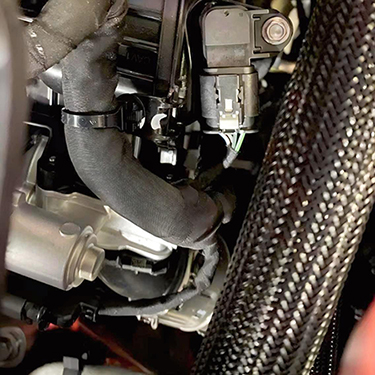

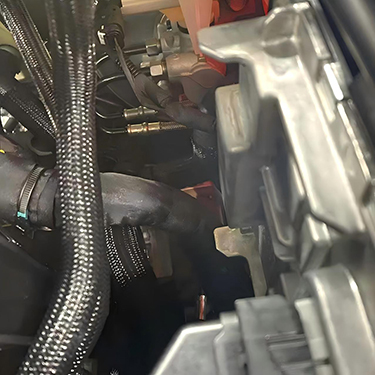

Applications
This braided sleeving is commonly used in automotive, rail transit, and fiber optic applications. It effectively extends the service life of hoses, pipes, wire harnesses, and other critical components by providing durable mechanical protection.
Certifications
Parameters
| Model | Flat Width (mm) | Application Range (mm) | Packaging Length (m/reel) | Item Code |
|---|---|---|---|---|
| 3±1 mm | 1-5 mm | 1000 | PA-003 | |
| 6±2 mm | 3-9 mm | 500 | PA-006 | |
| 8±2 mm | 5-12 mm | 300 | PA-008 | |
| 10±2 mm | 7-15 mm | 300 | PA-010 | |
| 12±2 mm | 8-18 mm | 300 | PA-012 | |
| 14±2 mm | 10-20 mm | 300 | PA-014 | |
| 16±3 mm | 12-22 mm | 300 | PA-016 | |
| 19±3 mm | 14-25 mm | 300 | PA-019 | |
| 25±3 mm | 18-30 mm | 200 | PA-025 | |
| 28±4 mm | 20-35 mm | 200 | PA-028 | |
| 32±4 mm | 25-40 mm | 200 | PA-032 | |
| 38±4 mm | 30-45 mm | 100 | PA-038 | |
| 50±5 mm | 35-55 mm | 100 | PA-050 | |
| 60±5 mm | 40-60 mm | 100 | PA-060 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
