EX902

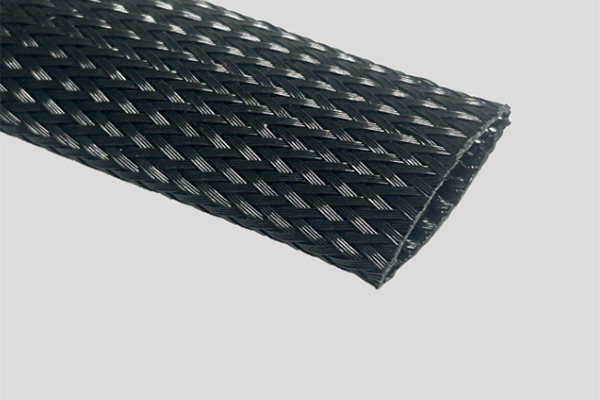

PPS Braided Sleeving
- Material: Polyphenylene sulfide (PPS)
- Color: Black
- Operating Temperature: -70°C to +200°C
- Flame Retardancy: Self-extinguishing material
- Packaging: Paper reel
Inquiry Now
EX902 series is a braided sleeving manufactured from polyphenylene sulfide (PPS) monofilament. This material offers an ultra-wide operating temperature range, extremely low moisture absorption, and excellent dimensional stability, maintaining reliable mechanical performance and chemical resistance in high-temperature environments.
Applications
This durable braided sleeving is designed to protect hoses, wire harnesses, and cable assemblies from abrasion, cuts, and wear in high-temperature operating conditions.
Certifications
Parameters
| Model | Flat Width (mm) | Application Range (mm) | Packaging Length (m/reel) |
|---|---|---|---|
| 3±1 | 1~5 | 1000 | |
| 6±2 | 3~9 | 500 | |
| 8±2 | 5~12 | 300 | |
| 10±2 | 7~15 | 300 | |
| 12±2 | 8~18 | 300 | |
| 14±2 | 10~20 | 300 | |
| 16±3 | 12~22 | 300 | |
| 19±3 | 14~25 | 300 | |
| 25±3 | 18~30 | 200 | |
| 28±4 | 20~35 | 200 | |
| 32±4 | 25~40 | 200 | |
| 38±4 | 30~45 | 100 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
Download PDF
