ST2100

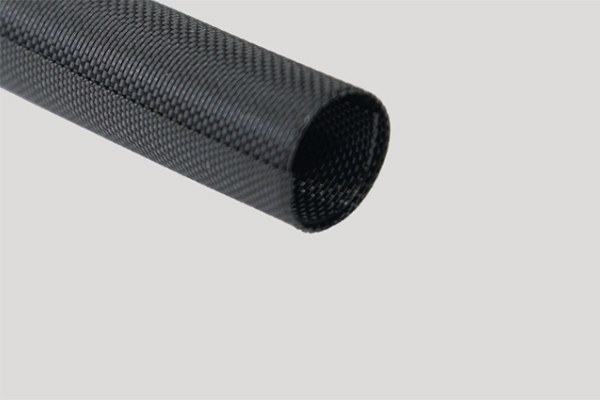

Black Textile Self-Closing Wrap
- Material: Polyester (PET)
- Color: Black
- Operating Temperature: -40°C to +150°C
-
Flame Retardancy:
- Finished product: Complies with FMVSS 302 (burn rate < 100 mm/min)
- Abrasion Resistance: Grade 4 (ISO 6722-1)
- Melting Point: 240 ±10°C
- Thermal Aging Performance: Maintains stable performance after 336 hours at 175°C
- Cutting Method: Hot cutting
- Packaging: Paper reel
Inquiry Now

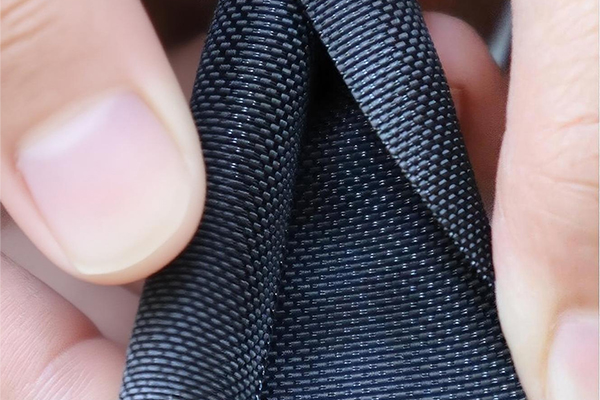

ST2100 series is a textile self-closing wrap woven from PET monofilament (weft) and multifilament yarns (warp). A special forming process allows an open self-closing structure with an edge overlap rate of 40% to 60%. This self-closing wrap provides excellent flame retardancy and abrasion resistance, making it suitable for demanding protection applications.

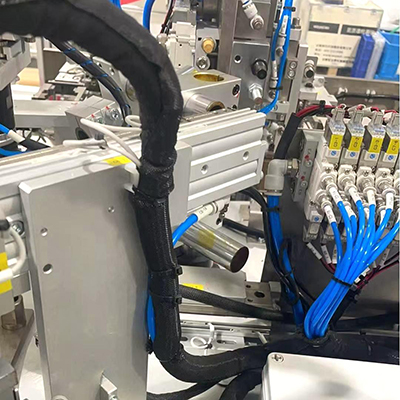

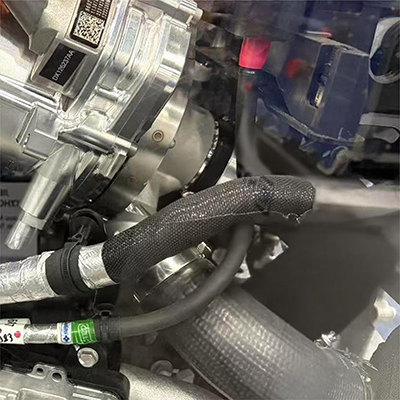

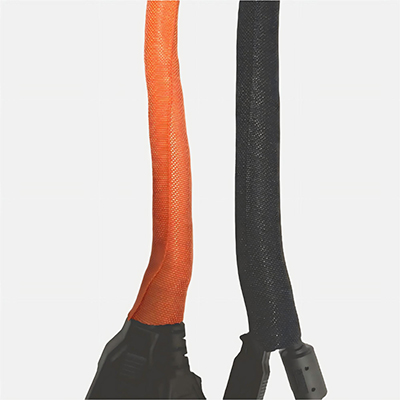

Applications
This self-closing wrap is widely used in automotive, telecommunications, optical fiber, and industrial applications that demand high-performance wire harness protection.
Certifications
Parameters
| Model | Diameter (mm) | Application Range (mm) | Packaging Length (m/reel) | Item Code |
|---|---|---|---|---|
| 3 | 2~4 | 500 | PC-003-BK | |
| 6 | 5~6 | 200 | PC-006-BK | |
| 8 | 7~9 | 100 | PC-008-BK | |
| 10 | 9~11 | 100 | PC-010-BK | |
| 13 | 11~15 | 100 | PC-013-BK | |
| 16 | 15~18 | 100 | PC-016-BK | |
| 19 | 18~23 | 50 | PC-019-BK | |
| 25 | 23~28 | 50 | PC-025-BK | |
| 29 | 28~31 | 25 | PC-029-BK | |
| 32 | 31~34 | 25 | PC-032-BK | |
| 38 | 34~42 | 25 | PC-038-BK | |
| 50 | 45~60 | 25 | PC-050-BK |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
