ST2101
Orange Textile Self-Closing Wrap
- Material: Polyester (PET)
- Color: Orange
- Operating Temperature: -40°C to +150°C
-
Flame Retardancy:
- Finished product: Complies with FMVSS 302 (burn rate < 100 mm/min)
- Abrasion Resistance: Grade 4 (ISO 6722-1)
- Melting Point: 240 ±10°C
- Cutting Method: Hot cutting
- Packaging: Paper reel
Inquiry Now

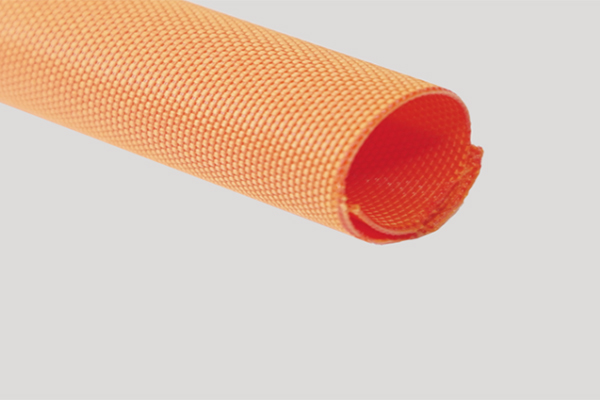

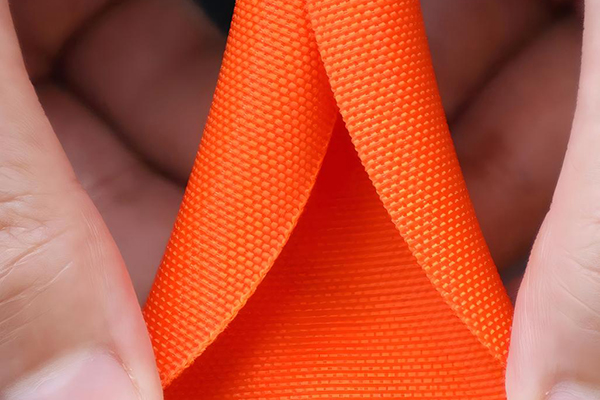

ST2101 series is an orange textile self-closing wrap woven from polyester monofilament and multifilament yarns. It combines flexibility, abrasion resistance, and dust resistance. The open self-closing structure facilitates easy installation and maintenance, while its dense braid construction delivers a high level of protection for critical components.
Applications

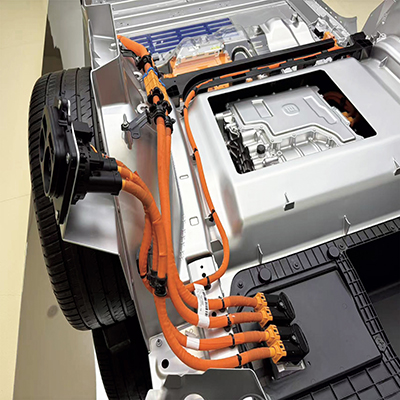

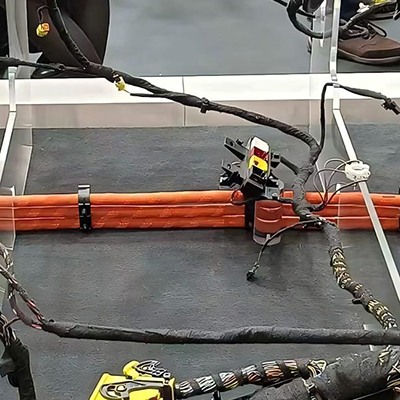

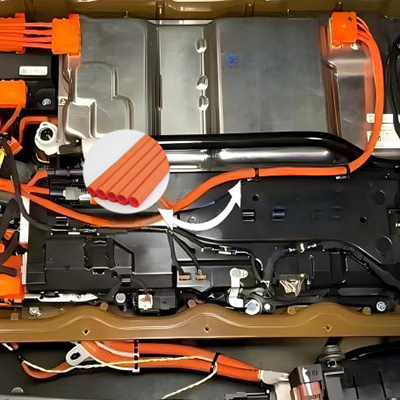

This textile self-closing wrap is widely used for protecting high-voltage wire harnesses in new energy vehicles. Its orange color meets high-voltage cable identification standards.
Certifications
Parameters
| Model | Diameter (mm) | Application Range (mm) | Packaging Length (m/reel) | Item Code |
|---|---|---|---|---|
| 5 | 4~6 | 200 | PC-005-OR | |
| 8 | 7~9 | 100 | PC-008-OR | |
| 10 | 9~11 | 100 | PC-010-OR | |
| 13 | 11~15 | 100 | PC-013-OR | |
| 16 | 15~18 | 100 | PC-016-OR | |
| 19 | 18~23 | 50 | PC-019-OR | |
| 25 | 23~28 | 50 | PC-025-OR | |
| 29 | 28~31 | 25 | PC-029-OR | |
| 32 | 31~34 | 25 | PC-032-OR | |
| 38 | 34~42 | 25 | PC-038-OR |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
