PVC1435

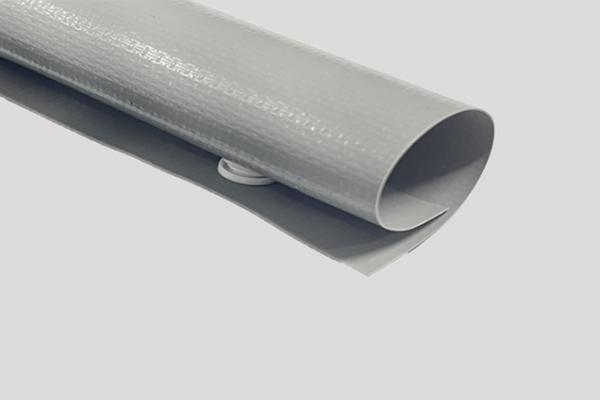

PVC Button Wrap
- Material: PVC
- Color: Gray
- Operating Temperature: -15°C to +105°C (continuous)
-
Flame Retardancy:
- Raw material: Complies with UL94 VTM-0
- Cutting Method: Cold cutting
- Packaging: Carton
Inquiry Now

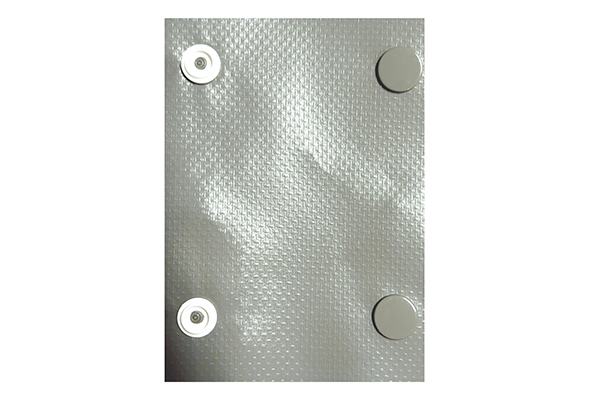

PVC1435 series is a button wrap featuring a snap-button structure that enables quick installation without special tools. It effectively reduces abrasion on wire harnesses and cables during operation, providing reliable protection and enhanced safety.
Applications

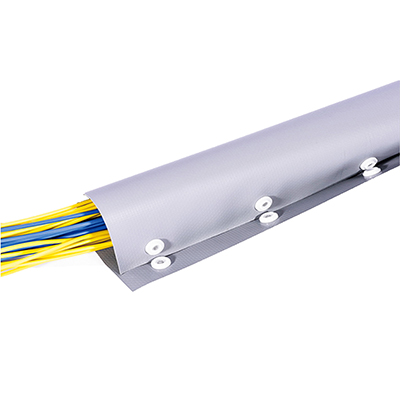

PVC button wrap is suitable for wire harness organization and protection, and is widely used in computer equipment, distribution panels, and various electrical installations.
Certifications
Parameters
| Model | Diameter (mm) | Flat Width (mm) | Packaging Length (m/box) | Item Code |
|---|---|---|---|---|
| 12 | 60±5 | 75 | SC-012 | |
| 15 | 67±5 | 75 | SC-015 | |
| 19 | 80±5 | 75 | SC-019 | |
| 25 | 100±8 | 75 | SC-025 | |
| 31 | 120±8 | 75 | SC-031 | |
| 37 | 140±8 | 75 | SC-037 | |
| 40 | 148±10 | 75 | SC-040 | |
| 44 | 160±10 | 75 | SC-044 | |
| 51 | 180±15 | 75 | SC-051 | |
| 57 | 202±15 | 75 | SC-057 | |
| 60 | 210±15 | 75 | SC-060 | |
| 70 | 242±15 | 75 | SC-070 | |
| 100 | 335±15 | 75 | SC-100 | |
| 150 | 495±15 | 75 | SC-150 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
Download PDF
