TEMI5654

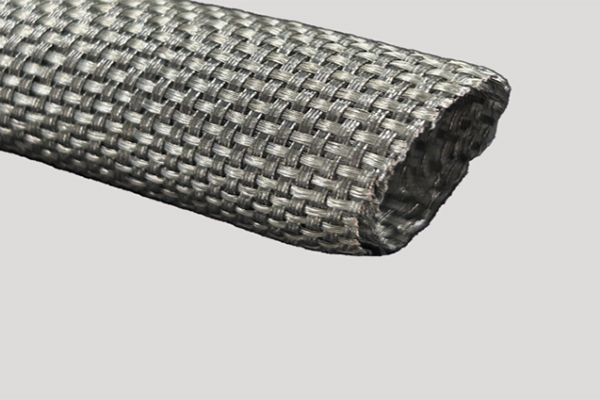

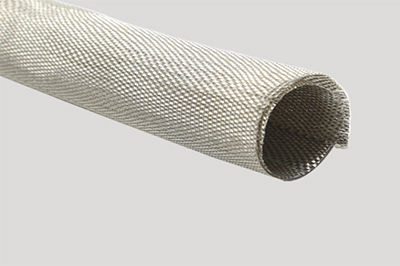

Tinned Copper Foil Self-Closing Wrap
- Material: Tinned copper foil strands + polyester
- Operating Temperature: -50°C to +150°C
- Shielding Effectiveness: ≥60 dB (30 MHz–3 GHz, based on GB/T 30142-2013)
- Color: Natural tinned finish
- Cutting Method: Cold cutting
- Packaging: Paper reel
Inquiry Now

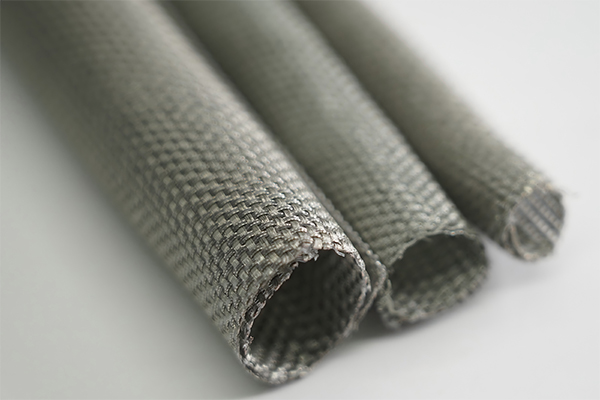

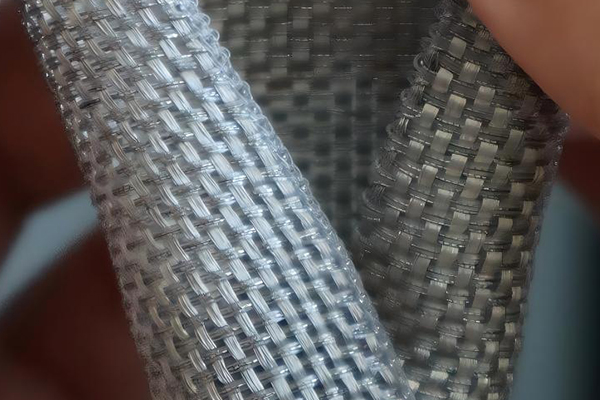

TEMI5654 self-closing wrap is braided primarily from tinned copper foil strands combined with polyester monofilament. The tinned copper foil strands weigh approximately half that of conventional tinned copper wire, enabling effective EMI shielding with significantly reduced weight. The side-opening structure allows for easy installation and maintenance.

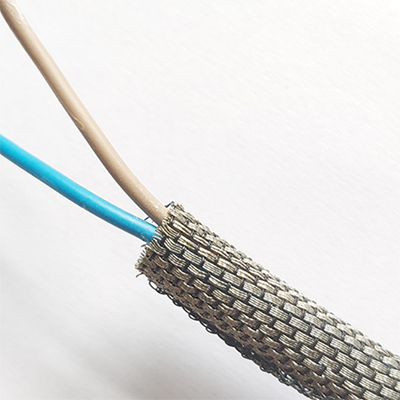

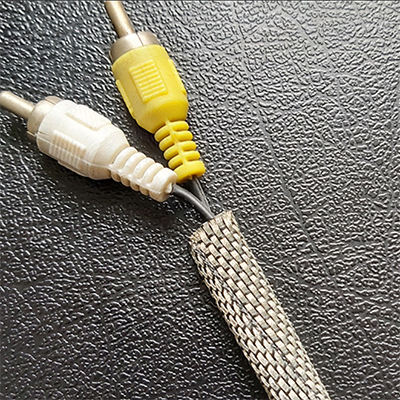

Applications
This self-closing wrap is used for electromagnetic shielding and attenuation of wire harnesses in automotive, rail transit, high-speed rail, and aviation applications.
Certifications
Parameters
| Model | Diameter (mm) | Application Range (mm) | Overlap | Packaging Length (m/reel) |
|---|---|---|---|---|
| 8 | 5-8 | ≥30% | 100 | |
| 10 | 9-11 | ≥30% | 100 | |
| 13 | 12-14 | ≥30% | 100 | |
| 16 | 15-17 | ≥30% | 100 | |
| 19 | 18-21 | ≥30% | 50 | |
| 25 | 22-28 | ≥30% | 50 | |
| 30 | 29-34 | ≥30% | 25 | |
| 38 | 35-44 | ≥30% | 25 | |
| 50 | 46-60 | ≥30% | 25 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
