ST2401

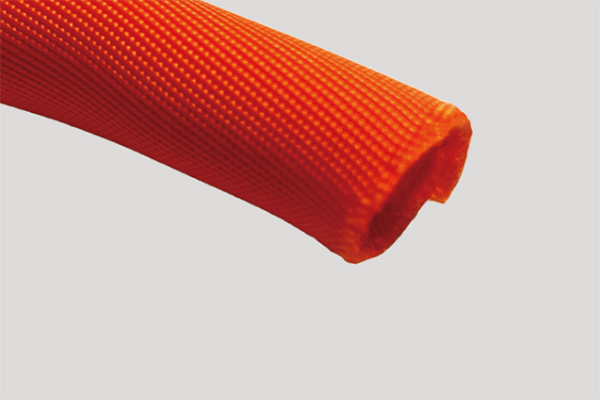

Thicken Plain Weave Self-Closing Wrap
- Material: Polyester (PET)
- Color: Orange
- Operating Temperature: −40°C to +150°C
- Melting Point: 240 ±10°C
- Flame Retardancy: <100 mm/min (FMVSS 302)
- Abrasion Resistance: Grade 6, >30,000 cycles
- Rodent Resistance: Protection rate ≥0.7
- Cutting Method: Hot cutting
- Packaging: Paper reel
Inquiry Now

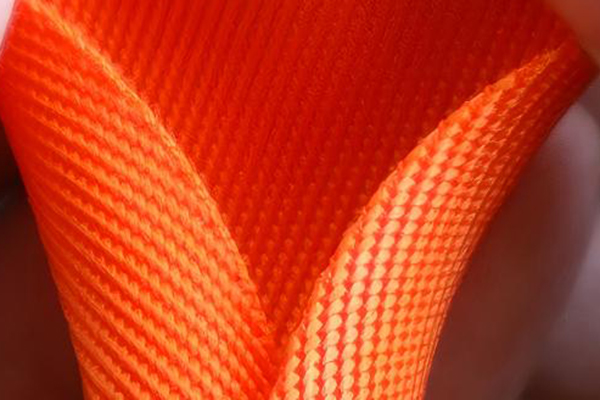

ST2401 series is a self-closing wrap woven from PET monofilament and multifilament yarns. Its robust construction provides superior impact protection for cables, while the orange color enables clear high-voltage identification.
Applications

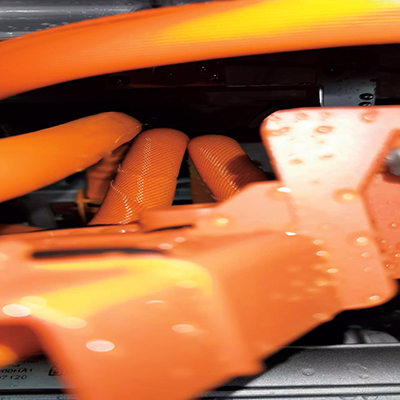

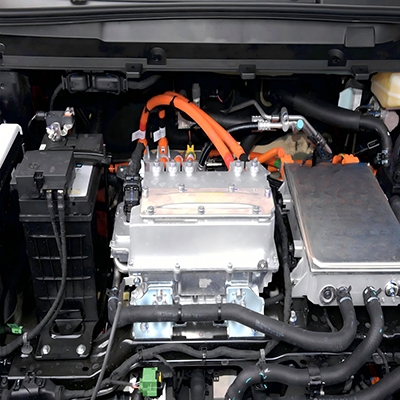

This self-closing wrap is primarily used for protecting automotive chassis wire harnesses, effectively preventing damage from impacts such as flying stones and debris.
Certifications
Parameters
| Model | Diameter (mm) | Application Range (mm) | Packaging Length (m/reel) |
|---|---|---|---|
| 7 | 1.0±0.2 | 100 | |
| 10 | 1.0±0.2 | 100 | |
| 13 | 1.0±0.2 | 100 | |
| 16 | 1.0±0.2 | 100 | |
| 19 | 1.0±0.2 | 50 | |
| 25 | 1.0±0.2 | 25 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
