IS2443

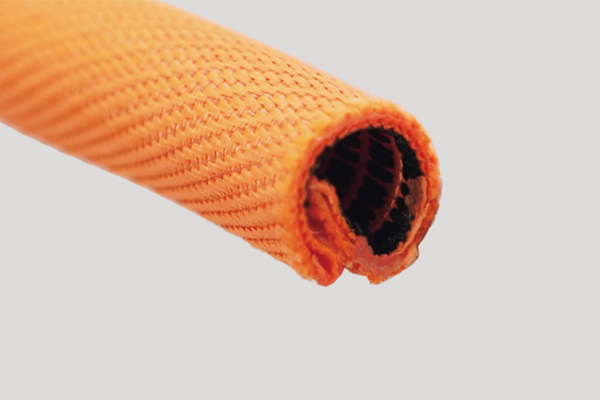

Orange Double Layer Self-Closing Wrap
- Material: PET (polyester)
- Color: Orange (outer) / Black (inner)
- Operating Temperature: −40°C to +150°C
- Melting Point: 240 ±10°C
- Flame Retardancy: <100 mm/min (FMVSS 302)
- Abrasion Resistance: Grade 8, >200,000 cycles (ISO reference)
- Impact Resistance: ≥50 J (based on LV 312)
- Cutting Method: Hot cutting
Inquiry Now

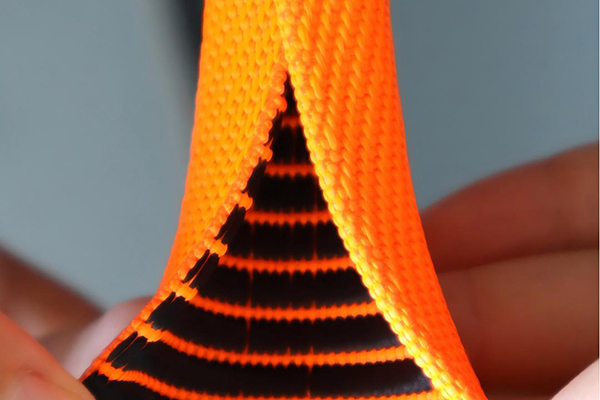

IS2443 series is a double-layer self-closing wrap woven from PET monofilament and multifilament yarns. It features an orange outer layer for high-voltage identification and a black inner layer. This dual-layer construction provides outstanding abrasion and impact resistance.
Applications

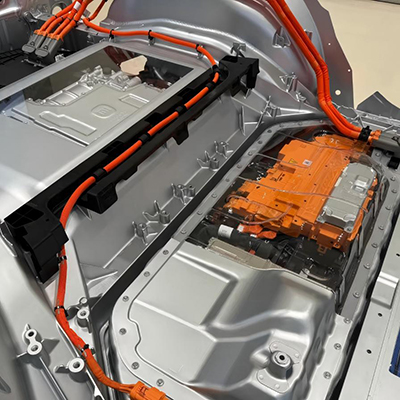

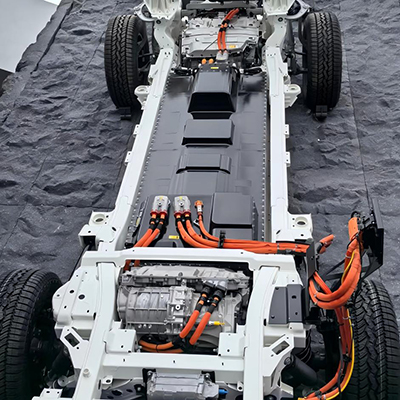

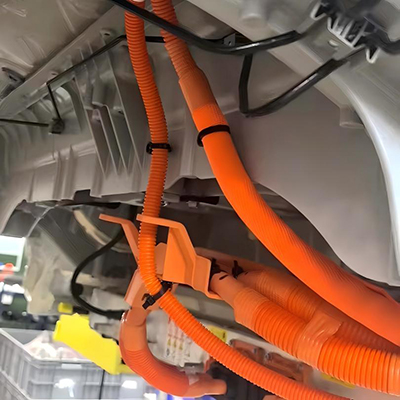

This double-layer self-closing wrap is designed for high-voltage wire harness protection in demanding applications, such as new energy vehicles.
Certifications
Parameters
| Model | Diameter (mm) | Application Range (mm) | Thickness (mm) | Packaging Length (m/reel) | Item Code |
|---|---|---|---|---|---|
| 8 | 6~8 | 1.8±0.2 | 100 | GPC-008 | |
| 10 | 9~11 | 1.8±0.2 | 50 | GPC-010 | |
| 13 | 12~14 | 1.8±0.2 | 50 | GPC-013 | |
| 16 | 15~17 | 1.8±0.2 | 50 | GPC-016 | |
| 19 | 18~21 | 1.8±0.2 | 50 | GPC-019 | |
| 25 | 22~28 | 1.8±0.2 | 25 | GPC-025 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
